Project 14: Efficient AWS Infrastructure Management with Ansible and Jenkins

Introduction:

🚀 Welcome to 'Efficient AWS Infrastructure Management with Ansible and Jenkins' – a project at the intersection of DevOps excellence and cloud automation! 🛠️ This initiative showcases a seamless integration of Ansible playbooks and Jenkins pipelines to empower users with a robust and efficient workflow for managing AWS infrastructure. 💡 By leveraging Infrastructure as Code (IaC) principles, our project automates the provisioning of EC2 instances, ensuring swift and reliable deployments. Explore the power of continuous integration and deployment as we orchestrate the deployment process with precision, making AWS infrastructure management a streamlined and effortless endeavor. 🌐✨

Technologies Used in This Project:

Ansible:
- Used for automating the provisioning and configuration of AWS resources, ensuring efficient and consistent deployment.
Jenkins:
- Orchestrates the deployment pipeline, automating the execution of Ansible playbooks and ensuring seamless continuous integration.
AWS (Amazon Web Services):
- Chosen for its cloud computing capabilities, facilitating scalable infrastructure provisioning and resource management.
Docker:
- Enables containerization of the application, ensuring portability and ease of deployment across various environments.
Trivy:
- Conducts filesystem security scanning to maintain a secure environment and identify vulnerabilities in the deployed system.
Boto and Boto3:
- Python libraries interfacing with AWS services, enabling seamless communication between Ansible and AWS resources.
GitHub:
- Serves as the version control repository, facilitating collaboration, versioning, and project history management.

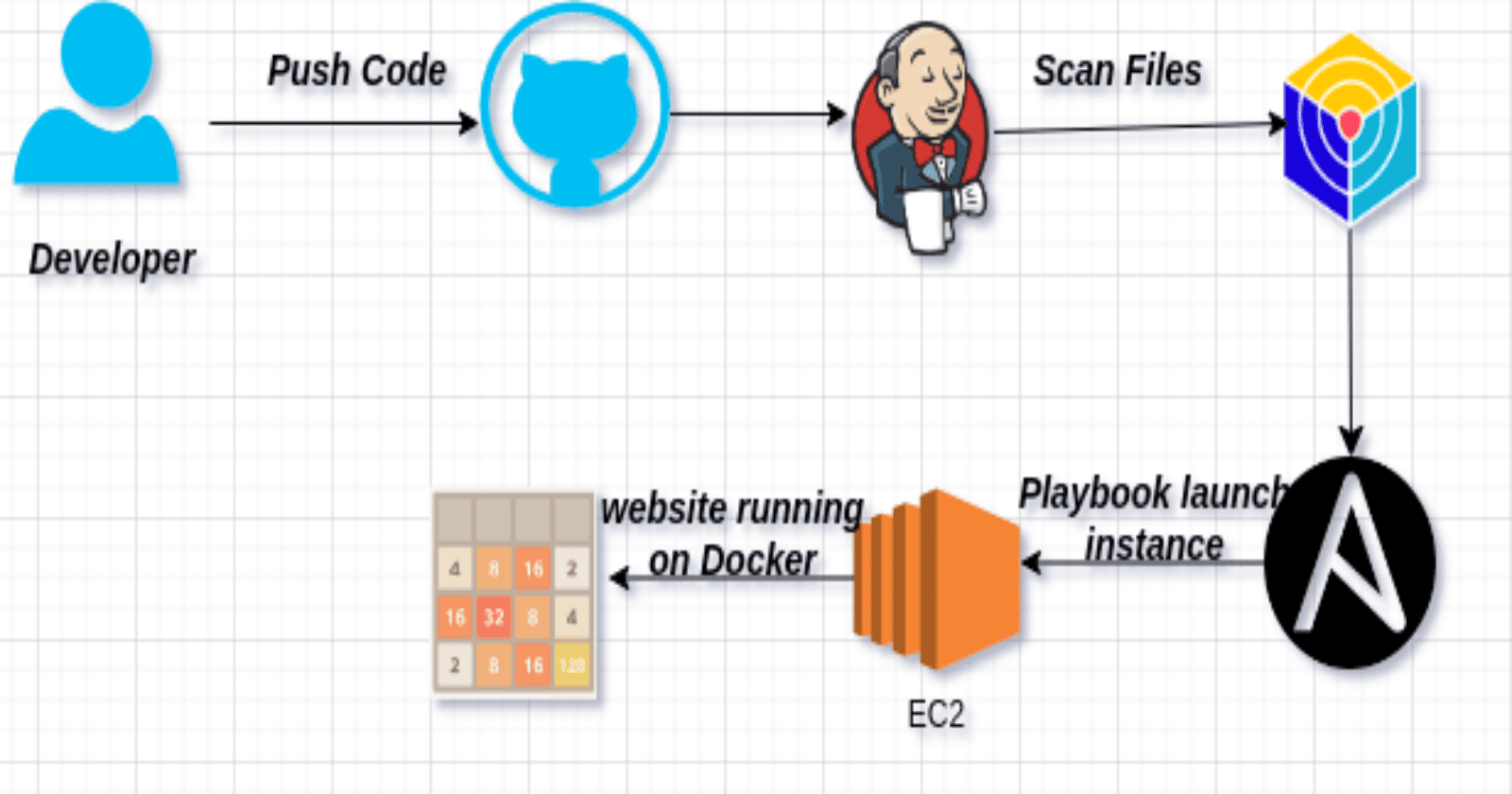

Project Overview:

Project:

Launch ec2 instance with t2.micro and ubuntu AMI. I have used following terraform file to launch it.

    provider "aws" {
      region = "us-east-1" # Change this to your desired AWS region
    }

    resource "aws_instance" "my_instance" {
      count = 1


      ami                    = "ami-0fc5d935ebf8bc3bc" # Specify the AMI ID for your desired Amazon Machine Image
      instance_type          = "t2.medium"
      key_name               = "linux-kp" # Change this to your key pair name
      vpc_security_group_ids = [aws_security_group.terraform-instance-sg.id]


      tags = {
        Name = "CI-CD"
      }


    }

    output "jenkins_public_ip" {
        value = [for instance in aws_instance.my_instance : instance.public_ip]

    }



    #Create security group
    resource "aws_security_group" "terraform-instance-sg" {
      name        = "terraform-created-sg"
      description = "Allow inbound ports 22, 8080"
      vpc_id      = "vpc-0bb95d14e92638eb6"

      #Allow incoming TCP requests on port 22 from any IP
      ingress {
        from_port   = 22
        to_port     = 22
        protocol    = "tcp"
        cidr_blocks = ["0.0.0.0/0"]
      }
      #Allow incoming TCP requests on port 443 from any IP
      ingress {
        description = "Allow HTTPS Traffic"
        from_port   = 443
        to_port     = 443
        protocol    = "tcp"
        cidr_blocks = ["0.0.0.0/0"]
      }

      #Allow incoming TCP requests on port 8080 from any IP
      ingress {
        from_port   = 80
        to_port     = 80
        protocol    = "tcp"
        cidr_blocks = ["0.0.0.0/0"]
      }

      #Allow incoming TCP requests on port 8080 from any IP
      ingress {
        from_port   = 8080
        to_port     = 8080
        protocol    = "tcp"
        cidr_blocks = ["0.0.0.0/0"]
      }


      #Allow all outbound requests
      egress {
        from_port   = 0
        to_port     = 0
        protocol    = "-1"
        cidr_blocks = ["0.0.0.0/0"]
      }
    }

Install Jenkins and Trivy :

SSH into created ec2 instance and make following .sh files to install required packages.

jenkins-install.sh

 #!/bin/bash

 sudo apt update -y
 sudo apt install fontconfig openjdk-17-jre -y
 sudo wget -O /usr/share/keyrings/jenkins-keyring.asc \
   https://pkg.jenkins.io/debian-stable/jenkins.io-2023.key
 echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] \
   https://pkg.jenkins.io/debian-stable binary/ | sudo tee \
   /etc/apt/sources.list.d/jenkins.list > /dev/null
 sudo apt-get update -y
 sudo apt-get install jenkins -y
 sudo systemctl enable jenkins
 sudo systemctl start jenkins
 sudo systemctl status jenkins

Run following command to install it.

 chmod 777 jenkins-install.sh
 ./jenkins-install.sh

trivy-install.sh

 #!/bin/bash
 sudo apt-get install wget apt-transport-https gnupg lsb-release -y
 wget -qO - https://aquasecurity.github.io/trivy-repo/deb/public.key | sudo apt-key add -
 echo deb https://aquasecurity.github.io/trivy-repo/deb $(lsb_release -sc) main | sudo tee -a /etc/apt/sources.list.d/trivy.list
 sudo apt-get update -y
 sudo apt-get install trivy -y

Run following command to install it.

 chmod 777 trivy-install.sh
 ./trivy-install.sh

ansible-install.sh

 #!/bin/bash
 sudo apt update -y
 sudo apt install spftware-properties-common
 sudo add-apt-repository --yes --update ppa:ansible/ansible
 sudo apt install python3 -y
 sudo apt install ansible -y
 ansible --version

Run Following command to install it.

 chmod 777 ansible-install.sh
 ./ansible-install.sh

boto-install.sh

 #!/bin/bash
 sudo apt install python3-pip -y
 sudo pip3 install boto boto3 -y
 sudo apt-get install python3-boto -y
 pip list boto | grep boto

Run following command to install it

 chmod 777 boto-install.sh
 ./boto-install.sh

After executing these scripts, grab your EC2 instance's Public IP Address and open it in the browser:

 http://<EC2 Public IP Address:8080>

It will prompt for a password, which you can obtain using:

get password by following command:

sudo cat /var/lib/jenkins/secrets/initialAdminPassword

Create a user, click save, and continue. Explore Jenkins via the Getting Started Screen.

Now Lets create IAM Role for Ec2 instance to create new instance.

click on create role in IAM console.

Now Select Usecase for EC2 and click Next.

Search for AmazonEc2FullAccess and click Next. Give a name and create role.

Now Goto Ec2 instance dashboard and select our insatnce and modify IAM role for it.

Let’s go to the Jenkins machine and add the Ansible Plugin

Manage Jenkins → Plugins → Available Plugins

search for Ansible and install

Now get path of installed ansible using following command:

which ansible

Copy that path and add it to the tools section of Jenkins at ansible installations.

Finally, create an Ansible playbook and upload it to your GitHub repository. The playbook provisions a new EC2 instance and security group. Here is a sample playbook:

---
- name: Povising a new ec2 instance and sg
  hosts: localhost
  connection: local
  gather_facts: False
  tags: provisioning

  pre_tasks:
    - name: Gather facts
      setup:
    - name: print python version
      debug:
        msg: "Using Python {{ ansible_python_version }}"
    - name: Install dependencies
      shell: "/usr/bin/python3.10 -m pip install {{ item }}"
      loop:
      - boto3
      - botocore
  vars:
    ansible_python_interpreter: /usr/bin/python3.10
    keypair: linux-kp
    instance_type: t2.micro
    image_id: ami-0c7217cdde317cfec
    wait: yes
    group: webserver
    count: 1
    region: us-east-1
    security_group: ec2-security-group
    tag_name:
      Name: demo-ec2

  tasks:

    - name: Create a security group
      amazon.aws.ec2_group:
        name: "{{ security_group }}"
        description: Security group for web server instance
        region: "{{ region }}"
        rules:
          - proto: tcp
            from_port: 22
            to_port: 22
            cidr_ip: 0.0.0.0/0
          - proto: tcp
            from_port: 8080
            to_port: 8080
            cidr_ip: 0.0.0.0/0
          - proto: tcp
            from_port: 5000
            to_port: 5000
            cidr_ip: 0.0.0.0/0
          - proto: tcp
            from_port: 80
            to_port: 80
            cidr_ip: 0.0.0.0/0
          - proto: tcp
            from_port: 443
            to_port: 443
            cidr_ip: 0.0.0.0/0
        rules_egress:
          - proto: all
            cidr_ip: 0.0.0.0/0
      register: basic_firewall
    - name: Launch the new ec2 INstance
      amazon.aws.ec2_instance:
        security_group: "{{ security_group }}"
        instance_type: "{{ instance_type }}"
        image_id: "{{ image_id }}"
        wait: "{{ wait }}"
        region: "{{ region }}"
        key_name: "{{ keypair }}"
        count: "{{ count }}"
        tags: "{{ tag_name }}"
        user_data: |
          #!/bin/bash
          sudo apt update -y
          sudo apt install docker.io -y
          sudo systemctl start docker
          sudo systemctl enable docker
          docker run -d --name game -p 8080:80 alexwhen/docker-2048
      register: ec2

Create a Jenkins pipeline using the provided code, and execute it by clicking "Build Now."

pipeline {
    agent any
    tools{
        ansible 'ansible'
    }
    stages {
        stage('cleanws') {
            steps {
                cleanWs()
            }
        }
        stage('checkout'){
            steps{
                git branch: 'main', url: 'https://github.com/patelajay745/ansible-deployment-ec2.git'
            }
        }
        stage('TRIVY FS SCAN') {
            steps {
                sh "trivy fs . > trivyfs.txt"
            }
        }
        stage('ansible provision') {
          steps {
             // To suppress warnings when you execute the playbook
             sh "pip install --upgrade requests==2.20.1"
             ansiblePlaybook playbook: 'ec2.yml'
            }
        }
    }
}

Retrieve the Public IP of the newly provisioned instance, visit <public-ip:8080>, and enjoy a game!

Conclusion:

🚀 In wrapping up, this project showcases a cohesive integration of Terraform, Ansible, and Jenkins for efficient AWS infrastructure management. The streamlined deployment pipeline, coupled with security measures and containerization, lays the groundwork for scalable and secure cloud practices. Whether you're a seasoned DevOps enthusiast or a newcomer, this project provides a robust template for seamless and automated AWS deployments. Happy automating! 🌐✨🛠️
